Tonefield molds (Classic)
The inner edge comes with minimal rounding, more so on the outer edge.
€610.00
The inner edge comes with minimal rounding, more so on the outer edge.

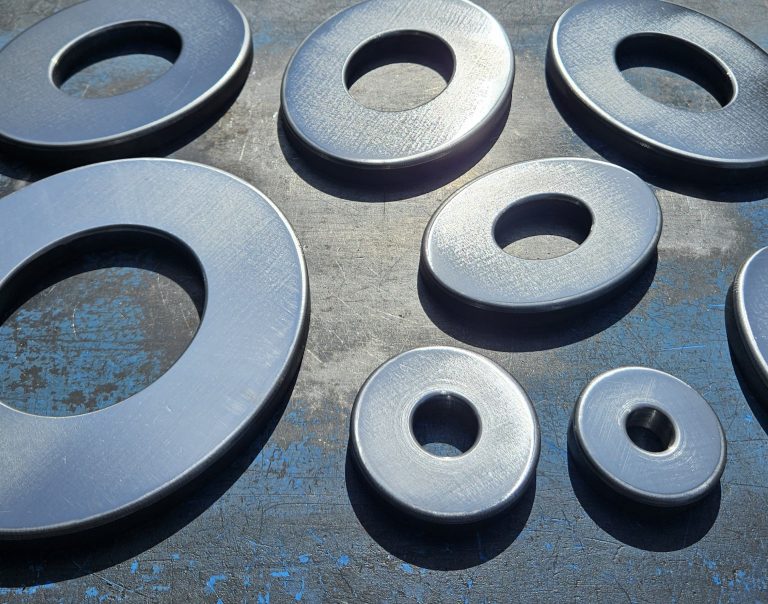

Our classic series of tonefield molds.

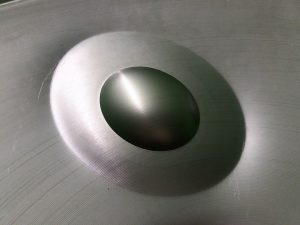

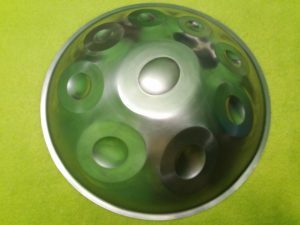

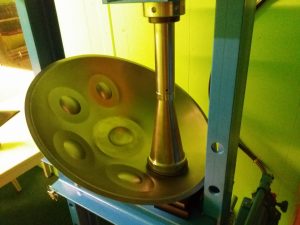

To press both the dimple and the tonefield at once using a press and 3 layers of 5mm SBR rubber. The inner and outer edges are rounded with a radius of 2.5mm.
This set contains 36 molds and covers the notes B2 – Bb5.
Depending on your own taste and skill you can make these notes lower or higher.
€610 (ex 21% VAT)
Additionally a set for the lower notes, this set contains 7 molds and covers the notes E2 – Bb2.
Again, depending on your own taste and skill you can makes these notes lower or higher.
€310 (ex 21% VAT)
3 x SBR rubber €45 (ex 21% VAT)
There is an instruction video below the pictures.
Custom made press molds can be purchased as well.
Shellopan based in France has a list for sizes of tonefields and their dimples.
You can find the list here :
https://www.shellopan.fr/images/shellopan-note-dimples-ratio.xlsx
The ratio notes/dimples can be changed in the F2 cell. A 1.0 ratio will give you dimples half the size of the notes, for all notes. A ratio higher than 1.0 (for example 1.0064) will give you dimples that become less than 50% of the note as the notes get higher.
The set contains the following molds (36):
1 (B2)
2 (C3)
3 (C#3)
4 (D3)
5 (D#3)
6 (E3)
7 (F3)
8 (F#3)
9 (G3)
10 (G#3)
11 (A3)
12 (A#3)
13 (B3)
14 (C4)
15 (C#4)
16 (D4)
17 (D#4)
18 (E4)
19 (F4)
20 (F#4)
21 (G4)
22 (G#4)
23 (A4)
24 (A#4)
25 (B4)
26 (C5)
27 (C#5)
28 (D5)
29 (D#5)
30 (E5)
31 (F5)
32 (F#5)
33 (G5)
34 (G#5)
35 (A5)
36 (A#5)
