Pneumatic hammer: the 280mm Golconda (GS-0838E) & 370 mm : GS-0838F

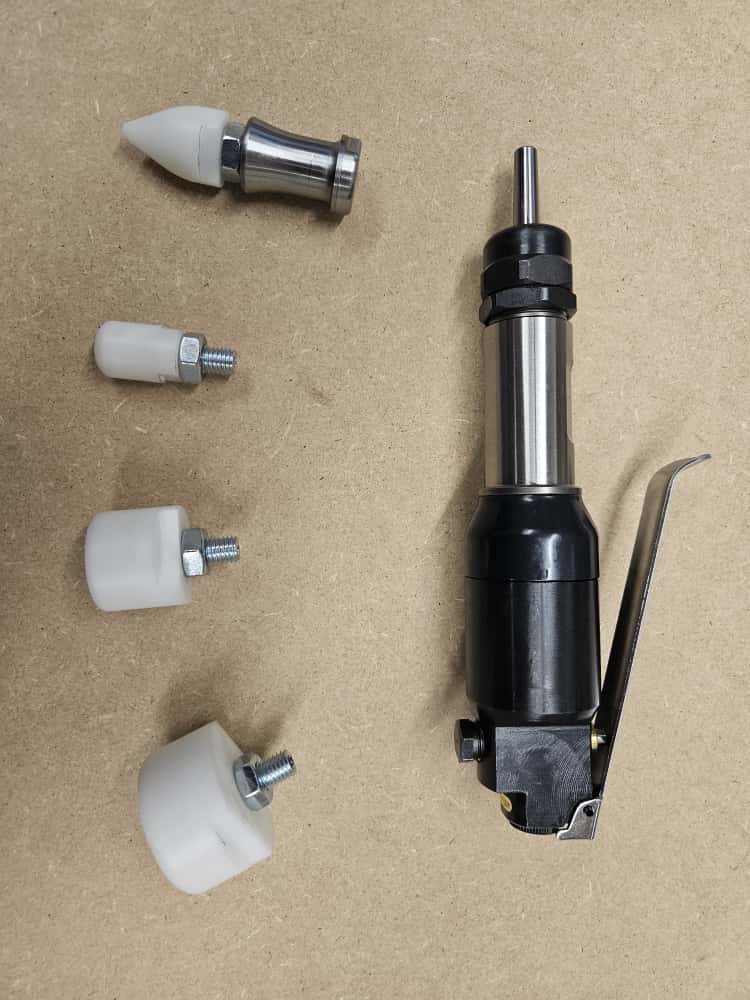

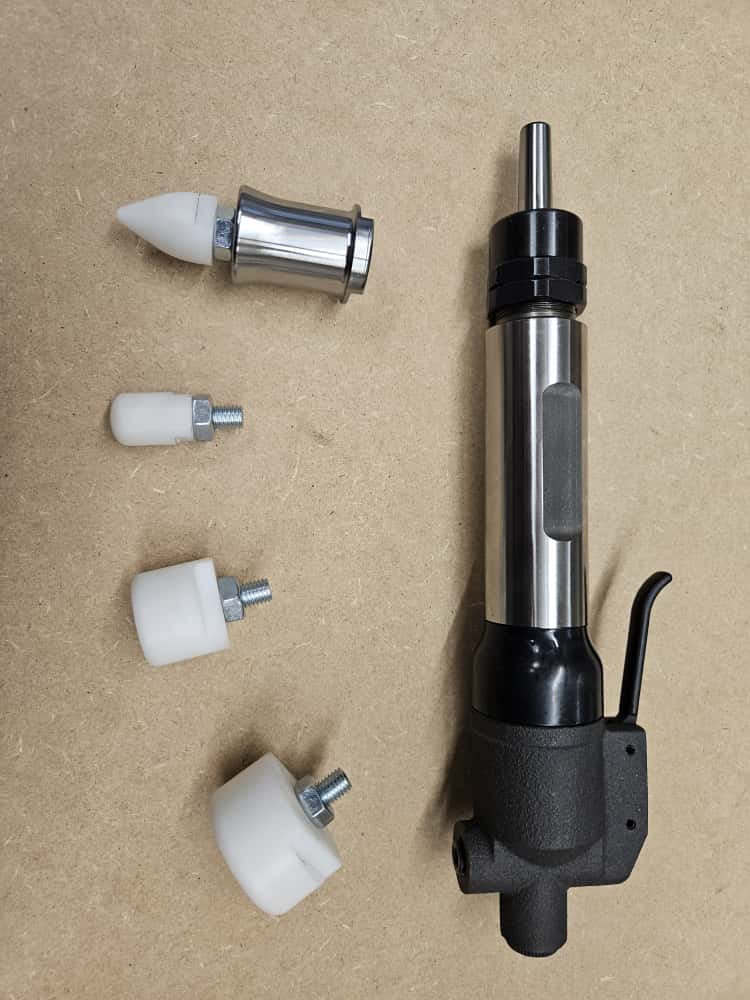

The pneumatic hammer SET comes with 4 hammer heads and an M10 thread adaptor.

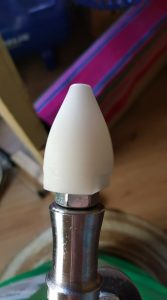

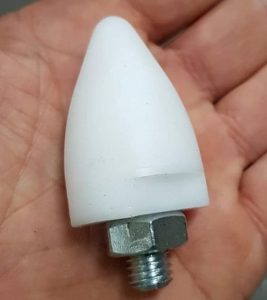

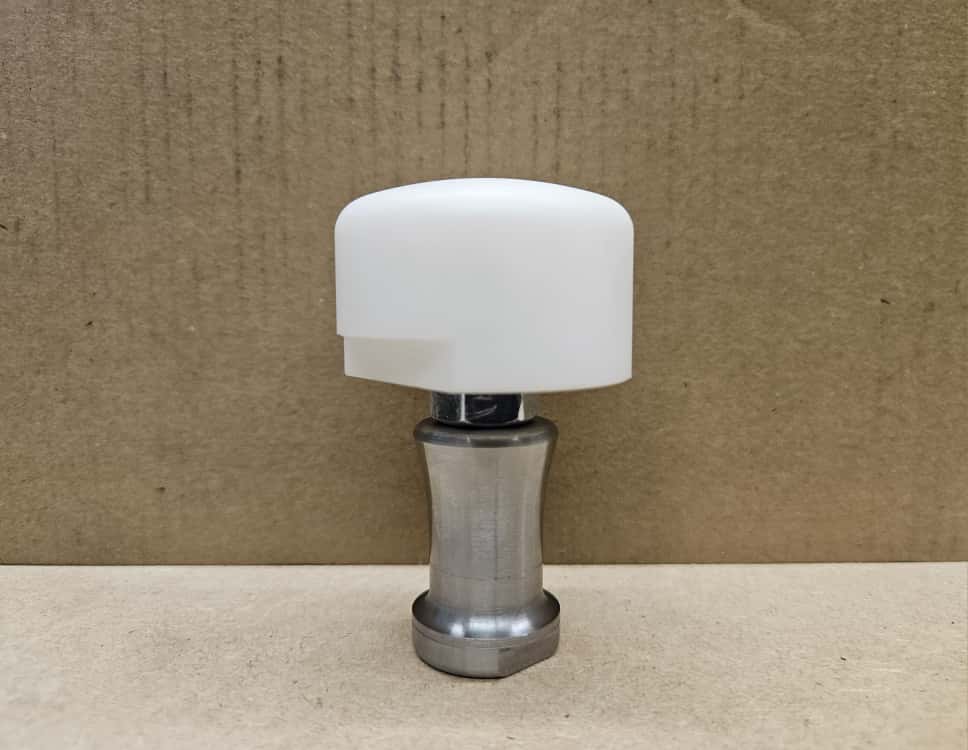

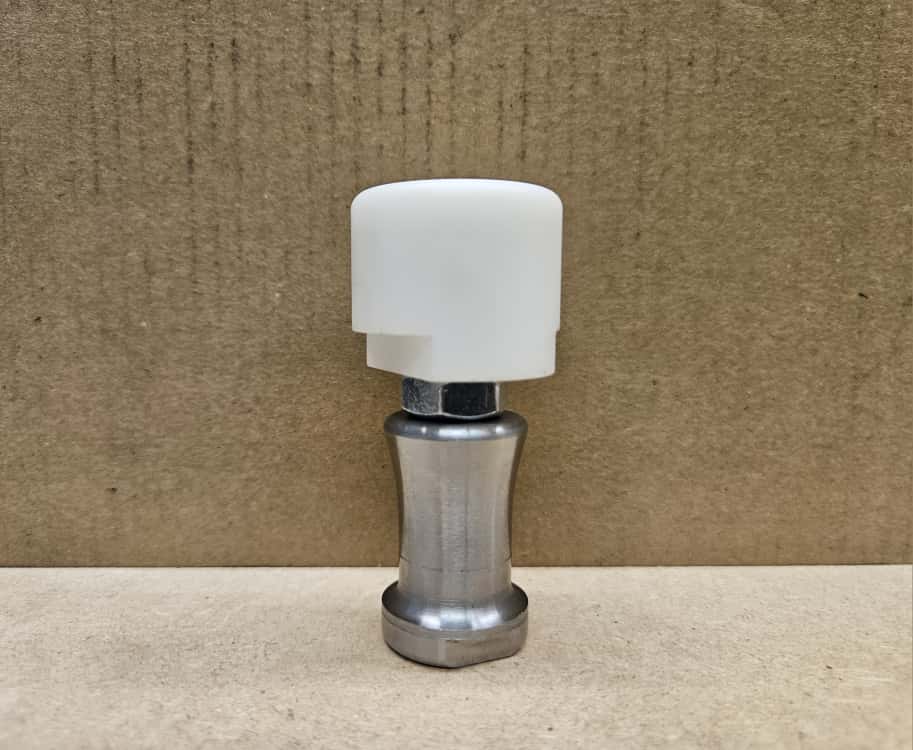

It comes with a small head, a pointy head, a large head, and a nearly flat head that has the same curve as the shell (interstitial)
To run at full speed, air flow of 400 Liter/minute is recommended.
370 mm Air Hammer Piston Diameter: 22 mm Stroke Length: 65 mm Free Speed: 1,000 RPM Weight: 2.95 kg Air Pressure: 90 PSI (6.2 kg/cm²) Air Consumption: 400 L/min Air Inlet: 3/8" PT Air Hose Size: 9.5 mm (3/8”) Daily lubrication oil recommended
| 280 mm Air Hammer Piston Diameter: 18 mm (45/64”) Stroke Length: 70 mm (2-3/4”) Free Speed: 1,500 BPM Weight: 1.60 kg Air Pressure: 90 PSI (6.2 kg/cm²) Air Consumption: 400 L/min Air Inlet: 1/4" PT Air Hose Size: 9.5 mm (3/8”) Can be used as a sound sculpture tool Daily lubrication oil recommended
|
|---|
